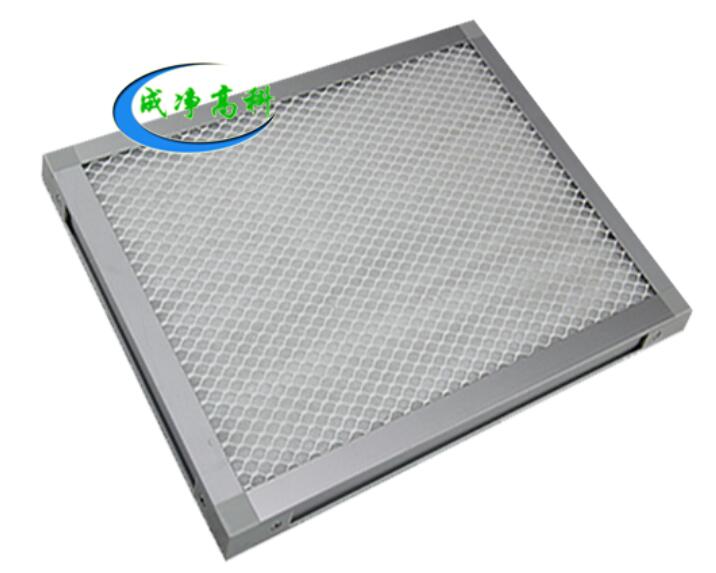

中效板式空气过滤器
Air filter bag in effect
特点 Features
●可重复使用多次
●阻力小、风量大
●广泛运用于空调系统的中级过滤
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
构成材料及运行条件
Materials and operating conditions
●框材：铝合金或镀锌板外框
●External frane：Aluminum alloy steel or frame
●滤料材质：新型复合无纺布
●Filter material: new composite nonwoven fabric
●滤料颜色：F5(白色)45%（浅黄色）、F6(绿色)65%（桔红色）、
F7(粉红色)85%（紫色）、F8(浅黄色)95%（深黄色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封条：醋酸乙酯
●Gasket：EVA
●使用温度、湿度：80℃、80%以内
●Use the highest temperature, humidity：80℃、80%
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions |
额定风量 Rated air flow |
初阻力 Initial resistance |
效率（级别） Efficiency (class) |
滤料颜色 Liao color |
|
CJ-M1-A1 |
495×295×46mm 20″×12″×2″ |
1000m3/h |
50Pa F5 55Pa F6 60Pa F7 65Pa F8 |
40-50% F5 60-70% F6 75-85% F7 85-95% F8 （比色法） colorimetric |
白色F5 White 绿色F6 Green 粉红F7 pink 浅黄F8 yellow |
|
CJ-M1-A2 |
495×495×46mm 20″×20″×2″ |
1800m3/h |
|||
|
CJ-M1-A3 |
595×295×46mm 24″×12″×2″ |
1300m3/h |
|||
|
CJ-M1-A4 |
595×495×46mm 24″×20″×2″ |
2200m3/h |
|||
|
CJ-M1-A5 |
595×595×46mm 24″×24″×2″ |
2600m3/h |
